- Length
- 9.83 m
- Beam
- 3.2 m
- Draft
- 1.42 m
- Sail area
- 50.07 m²
Specifications
Dimensions & displacement7
- Length overall
- 9.83 m
- Waterline length
- 8.74 m
- Beam
- 3.2 m
- Draft
- 1.42 m
- Displacement
- 3,500 kg
- Ballast
- 1,100 kg
- Mast height above water
- 14.2 m
Sails & rig9
- Rig type
- Sloop, fractional rig
- Sail area
- 50.07 m²
- Mainsail area
- 22.43 m²
- Foresail area
- 21.27 m²
- Foretriangle height (I)
- 12.3 m
- Foretriangle base (J)
- 3.46 m
- Mainsail luff (P)
- 11.16 m
- Mainsail foot (E)
- 4.02 m
- Forestay length
- 12.78 m
Engine & propulsion3
- Engine power
- 18 hp
- Engine type
- Diesel
- Engine make
- Yanmar
Hull & construction3
- Hull material
- Fibreglass
- Keel type
- Fin keel, bulb, spade rudder
- Ballast material
- Cast iron
Tanks2
- Fuel tank
- 68 L
- Fresh water tank
- 197 L
Production & design3
- Production started
- 1998
- Builder
- Beneteau
- Designer
- Groupe Finot
Performance ratios7
- Sail area / displacement
- 22.16
- Displacement / length
- 146.17
- Ballast / displacement
- 31.4 %
- Comfort ratio
- 17.49
- Capsize screening
- 2.13
- Hull speed
- 7.17 kn
- Load per cm of immersion
- 192.1 kg/cm

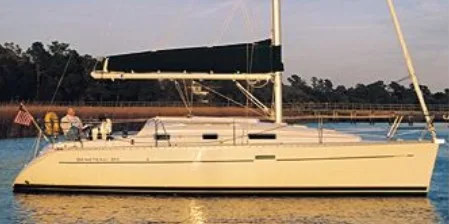

Yacht photography
Years, generations and variants
Beneteau 3111 generation
01
1998 — status pending
