- Length
- 10.82 m
- Beam
- 3.48 m
- Draft
- 1.9 m
- Sail area
- 60.29 m²
Specifications
Dimensions & displacement8
- Length overall
- 10.82 m
- Hull length
- 10.38 m
- Waterline length
- 9.4 m
- Beam
- 3.48 m
- Draft
- 1.9 m
- Displacement
- 6,100 kg
- Ballast
- 1,543 kg
- Mast height above water
- 15.06 m
Sails & rig9
- Rig type
- Sloop, 9/10 fractional rig
- Sail area
- 60.29 m²
- Mainsail area
- 24.69 m²
- Foresail area
- 25.83 m²
- Foretriangle height (I)
- 13.24 m
- Foretriangle base (J)
- 3.9 m
- Mainsail luff (P)
- 11.93 m
- Mainsail foot (E)
- 4.14 m
- Forestay length
- 13.8 m
Engine & propulsion3
- Engine power
- 29 hp
- Engine type
- Diesel
- Engine make
- Yanmar
Layout & accommodation1
- Headroom
- 2.01 m
Hull & construction3
- Hull material
- Fibreglass
- Keel type
- Fin keel, bulb, spade rudder
- Ballast material
- Cast iron
Tanks2
- Fuel tank
- 75 L
- Fresh water tank
- 255 L
Production & design4
- Production started
- 2005
- Production ended
- 2008
- Builder
- Beneteau
- Designer
- Berret - Racoupeau
Performance ratios7
- Sail area / displacement
- 18.43
- Displacement / length
- 204.88
- Ballast / displacement
- 25.3 %
- Comfort ratio
- 25.16
- Capsize screening
- 1.92
- Hull speed
- 7.44 kn
- Load per cm of immersion
- 224.7 kg/cm

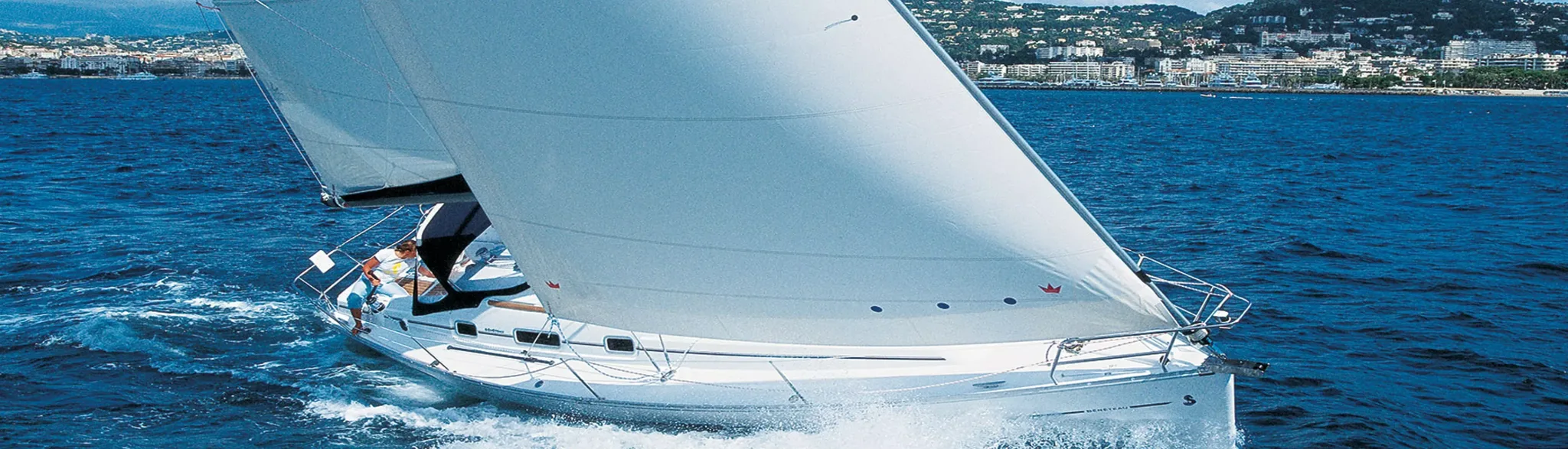

Yacht photography
Years, generations and variants
Beneteau 3431 generation
01
2005–2008
