- Length
- 11.25 m
- Beam
- 3.75 m
- Draft
- 1.85 m
- Sail area
- 66.52 m²
Specifications
Dimensions & displacement8
- Length overall
- 11.25 m
- Hull length
- 11 m
- Waterline length
- 10 m
- Beam
- 3.75 m
- Draft
- 1.85 m
- Displacement
- 6,630 kg
- Ballast
- 1,754 kg
- Mast height above water
- 15.5 m
Sails & rig9
- Rig type
- Sloop, 9/10 fractional rig
- Sail area
- 66.52 m²
- Mainsail area
- 27.46 m²
- Foresail area
- 28.92 m²
- Foretriangle height (I)
- 13.63 m
- Foretriangle base (J)
- 4.24 m
- Mainsail luff (P)
- 12.5 m
- Mainsail foot (E)
- 4.4 m
- Forestay length
- 14.28 m
Engine & propulsion4
- Engine power
- 40 hp
- Engine type
- Diesel
- Engine make
- Yanmar
- Engine model
- 3JH4E
Hull & construction3
- Hull material
- Fibreglass
- Keel type
- Fin keel, bulb
- Ballast material
- Cast iron
Tanks2
- Fuel tank
- 125 L
- Fresh water tank
- 374 L
Production & design3
- Production started
- 2004
- Builder
- Beneteau
- Designer
- Berret/Racoupeau
Performance ratios7
- Sail area / displacement
- 19.23
- Displacement / length
- 184.92
- Ballast / displacement
- 26.5 %
- Comfort ratio
- 23.47
- Capsize screening
- 2.02
- Hull speed
- 7.67 kn
- Load per cm of immersion
- 257.4 kg/cm

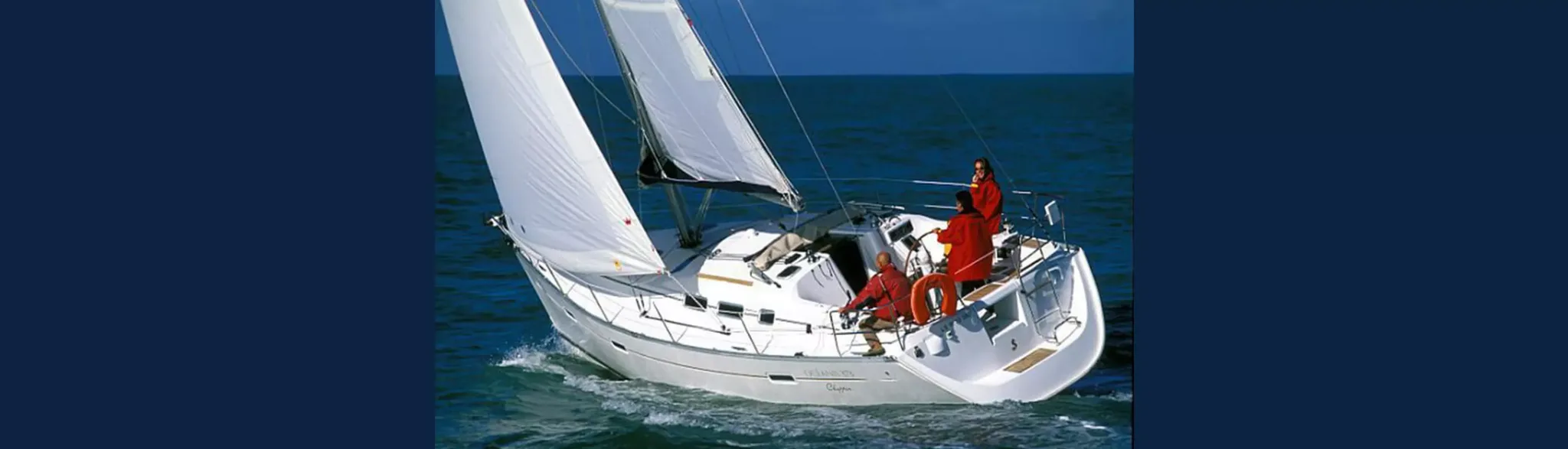

Yacht photography
Years, generations and variants
Beneteau 3731 generation
01
2004 — status pending
