- Length
- 11.63 m
- Beam
- 3.96 m
- Draft
- 1.55 m
- Sail area
- 59.27 m²
Specifications
Dimensions & displacement5
- Length overall
- 11.63 m
- Waterline length
- 10.69 m
- Beam
- 3.96 m
- Draft
- 1.55 m
- Displacement
- 7,780 kg
Sails & rig9
- Rig type
- Sloop, masthead rig
- Sail area
- 59.27 m²
- Mainsail area
- 28.25 m²
- Foresail area
- 31.04 m²
- Foretriangle height (I)
- 14.05 m
- Foretriangle base (J)
- 4.42 m
- Mainsail luff (P)
- 12.29 m
- Mainsail foot (E)
- 4.6 m
- Forestay length
- 14.72 m
Engine & propulsion3
- Engine power
- 40 hp
- Engine type
- Diesel
- Engine make
- Volvo
Hull & construction2
- Hull material
- Fibreglass
- Keel type
- Fin keel, bulb, spade rudder
Tanks2
- Fuel tank
- 136 L
- Fresh water tank
- 450 L
Production & design3
- Production started
- 2002
- Builder
- Beneteau
- Designer
- Berret/Racoupeau
Performance ratios6
- Sail area / displacement
- 15.41
- Displacement / length
- 177.37
- Comfort ratio
- 24.18
- Capsize screening
- 2.02
- Hull speed
- 7.94 kn
- Load per cm of immersion
- 291 kg/cm

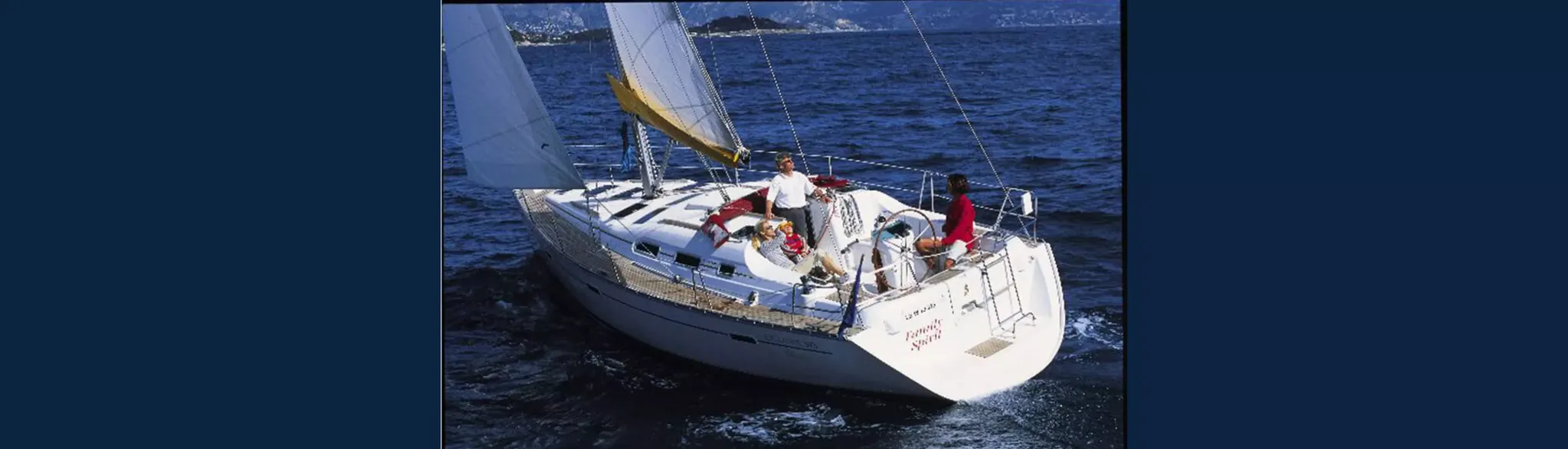

Yacht photography
Years, generations and variants
Beneteau 3931 generation
01
2002 — status pending
