- Length
- 11.97 m
- Beam
- 3.95 m
- Draft
- 1.9 m
- Sail area
- 59.37 m²
Specifications
Dimensions & displacement7
- Length overall
- 11.97 m
- Hull length
- 11.71 m
- Waterline length
- 10.67 m
- Beam
- 3.95 m
- Draft
- 1.9 m
- Displacement
- 7,095 kg
- Ballast
- 2,095 kg
Sails & rig9
- Rig type
- Sloop, fractional rig
- Sail area
- 59.37 m²
- Mainsail area
- 30.58 m²
- Foresail area
- 28.76 m²
- Foretriangle height (I)
- 13.93 m
- Foretriangle base (J)
- 4.13 m
- Mainsail luff (P)
- 13.3 m
- Mainsail foot (E)
- 4.6 m
- Forestay length
- 14.53 m
Engine & propulsion3
- Engine power
- 40 hp
- Engine type
- Diesel
- Engine make
- Yanmar
Hull & construction3
- Hull material
- Fibreglass
- Keel type
- Fin keel, bulb, spade rudder
- Ballast material
- Cast iron
Tanks2
- Fuel tank
- 220 L
- Fresh water tank
- 329 L
Production & design3
- Production started
- 2007
- Builder
- Beneteau
- Designer
- Berret/Racoupeau
Performance ratios7
- Sail area / displacement
- 16.41
- Displacement / length
- 162.87
- Ballast / displacement
- 29.5 %
- Comfort ratio
- 21.98
- Capsize screening
- 2.08
- Hull speed
- 7.93 kn
- Load per cm of immersion
- 289.4 kg/cm

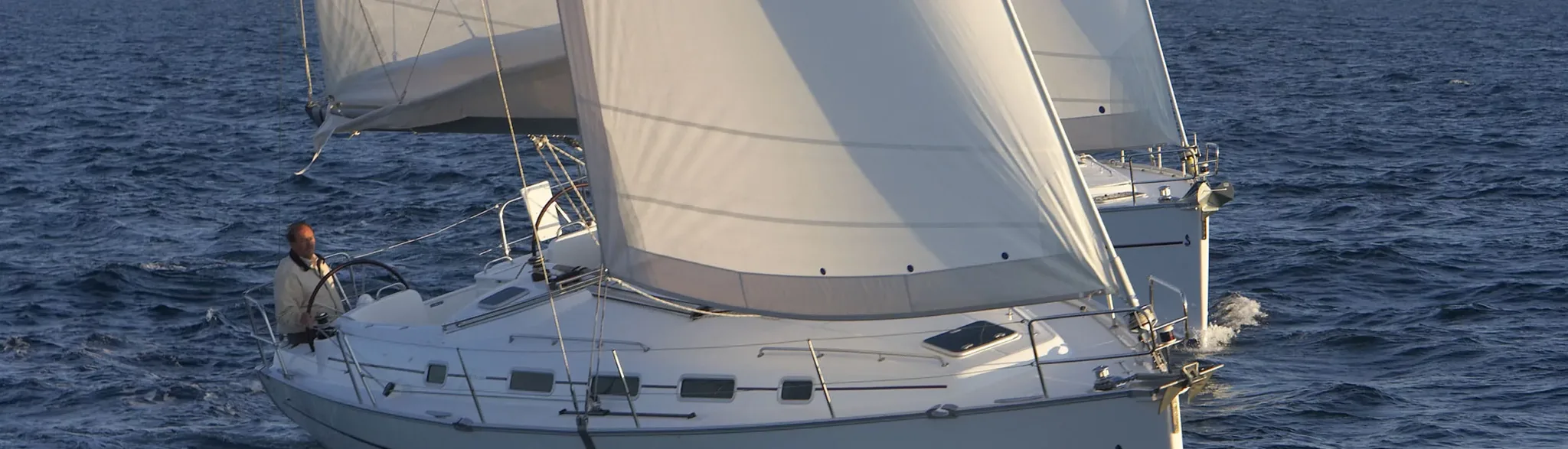

Yacht photography
Years, generations and variants
Cyclades 39.31 generation
01
2007 — status pending
