- Length
- 9.14 m
- Beam
- 3.25 m
- Draft
- 1.8 m
- Sail area
- 48.77 m²
Specifications
Dimensions & displacement6
- Length overall
- 9.14 m
- Waterline length
- 8.4 m
- Beam
- 3.25 m
- Draft
- 1.8 m
- Displacement
- 2,400 kg
- Ballast
- 900 kg
Sails & rig10
- Rig type
- Sloop, fractional rig
- Sail area
- 48.77 m²
- Mainsail area
- 26.57 m²
- Foresail area
- 20.95 m²
- Foretriangle height (I)
- 12.22 m
- Foretriangle base (J)
- 3.43 m
- Mainsail luff (P)
- 12.66 m
- Mainsail foot (E)
- 4.2 m
- Spinnaker pole length (SPL)
- 3.9 m
- Forestay length
- 12.69 m
Engine & propulsion3
- Engine type
- Diesel
- Engine make
- Yanmar
- Engine model
- 1GM
Hull & construction3
- Hull material
- Fibreglass, solid laminate
- Keel type
- Fin keel, bulb, spade rudder
- Ballast material
- Cast iron, water ballast
Tanks2
- Fuel tank
- 30 L
- Fresh water tank
- 57 L
Production & design5
- Production started
- 1990
- Production ended
- 2002
- Hulls built
- 140
- Builder
- Beneteau
- Designer
- Groupe Finot/Jean Beret
Performance ratios7
- Sail area / displacement
- 27.75
- Displacement / length
- 112.84
- Ballast / displacement
- 37.5 %
- Comfort ratio
- 12.36
- Capsize screening
- 2.45
- Hull speed
- 7.03 kn
- Load per cm of immersion
- 187.5 kg/cm

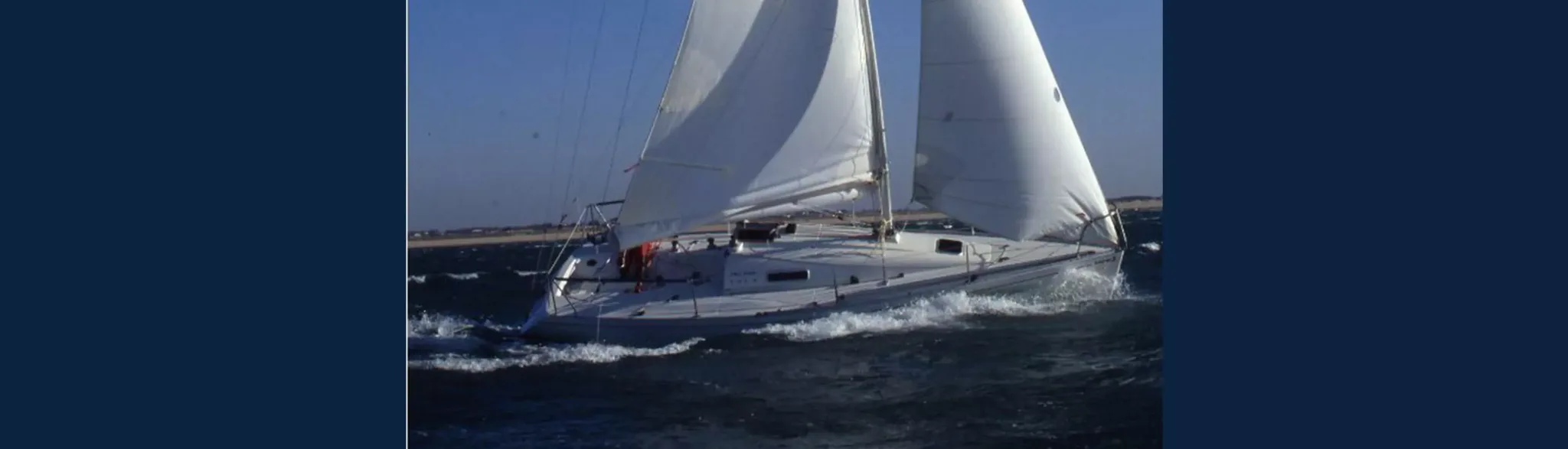

Yacht photography
Years, generations and variants
Figaro Solo1 generation
01
1990–2002
