- Length
- 9.3 m
- Beam
- 3.25 m
- Draft
- 1.68 m
- Sail area
- 36.42 m²
Specifications
Dimensions & displacement6
- Length overall
- 9.3 m
- Waterline length
- 8.22 m
- Beam
- 3.25 m
- Draft
- 1.68 m
- Displacement
- 3,200 kg
- Ballast
- 1,300 kg
Sails & rig9
- Rig type
- Sloop, masthead rig
- Sail area
- 36.42 m²
- Mainsail area
- 16.61 m²
- Foresail area
- 19.79 m²
- Foretriangle height (I)
- 11.49 m
- Foretriangle base (J)
- 3.44 m
- Mainsail luff (P)
- 9.91 m
- Mainsail foot (E)
- 3.35 m
- Forestay length
- 12 m
Engine & propulsion3
- Engine type
- Diesel
- Engine make
- Yanmar
- Engine model
- 2GM
Hull & construction3
- Hull material
- Fibreglass
- Keel type
- Fin keel, spade rudder
- Ballast material
- Cast iron
Tanks2
- Fuel tank
- 34 L
- Fresh water tank
- 102 L
Production & design5
- Production started
- 1981
- Production ended
- 1984
- Hulls built
- 443
- Builder
- Beneteau
- Designer
- Jean Berret
Performance ratios7
- Sail area / displacement
- 17.1
- Displacement / length
- 160.55
- Ballast / displacement
- 40.6 %
- Comfort ratio
- 16.64
- Capsize screening
- 2.23
- Hull speed
- 6.96 kn
- Load per cm of immersion
- 183.4 kg/cm

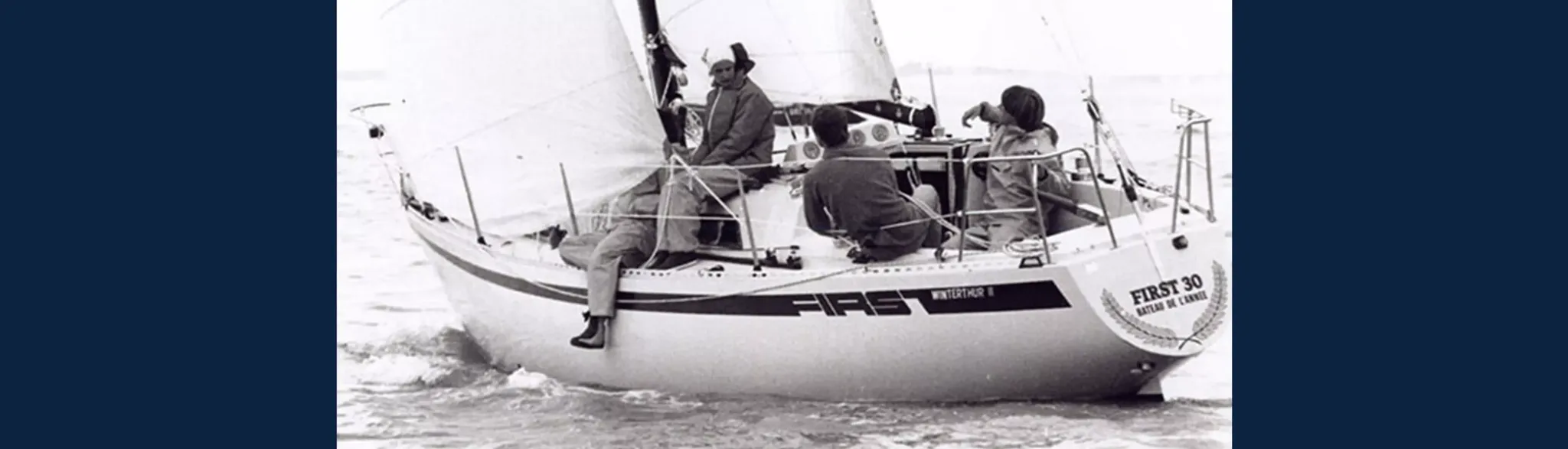

Yacht photography
Years, generations and variants
First 30 E (Berret)1 generation
01
1981–1984
