- Length
- 9.85 m
- Beam
- 3.21 m
- Draft
- 1.9 m
- Sail area
- 62.8 m²
Specifications
Dimensions & displacement6
- Length overall
- 9.85 m
- Waterline length
- 9.85 m
- Beam
- 3.21 m
- Draft
- 1.9 m
- Displacement
- 3,750 kg
- Ballast
- 1,090 kg
Sails & rig9
- Rig type
- Sloop, fractional rig
- Sail area
- 62.8 m²
- Mainsail area
- 26.85 m²
- Foresail area
- 26.23 m²
- Foretriangle height (I)
- 12.67 m
- Foretriangle base (J)
- 4.14 m
- Mainsail luff (P)
- 12.29 m
- Mainsail foot (E)
- 4.37 m
- Forestay length
- 13.33 m
Engine & propulsion4
- Engine power
- 20 hp
- Engine type
- Diesel
- Engine make
- Yanmar
- Engine model
- 3YM20
Hull & construction3
- Hull material
- Fibreglass
- Keel type
- Fin keel, bulb, twin rudders
- Ballast material
- Lead
Tanks2
- Fuel tank
- 30 L
- Fresh water tank
- 159 L
Production & design4
- Production started
- 2011
- Production ended
- 2015
- Builder
- Beneteau
- Designer
- Juan Kouyoumdjian
Performance ratios7
- Sail area / displacement
- 26.54
- Displacement / length
- 109.32
- Ballast / displacement
- 29.1 %
- Comfort ratio
- 17.18
- Capsize screening
- 2.09
- Hull speed
- 7.62 kn
- Load per cm of immersion
- 217.2 kg/cm

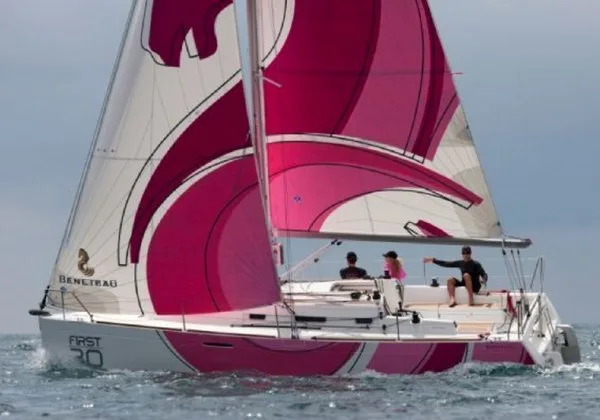

Yacht photography
Years, generations and variants
First 30 (Juan K.)1 generation
01
2011–2015
