- Length
- 12.24 m
- Beam
- 3.89 m
- Draft
- 2.45 m
- Sail area
- 78.78 m²
Specifications
Dimensions & displacement6
- Length overall
- 12.24 m
- Waterline length
- 10.67 m
- Beam
- 3.89 m
- Draft
- 2.45 m
- Displacement
- 7,536 kg
- Ballast
- 2,998 kg
Sails & rig9
- Rig type
- Sloop, fractional rig
- Sail area
- 78.78 m²
- Mainsail area
- 41.93 m²
- Foresail area
- 36.89 m²
- Foretriangle height (I)
- 16.05 m
- Foretriangle base (J)
- 4.6 m
- Mainsail luff (P)
- 15.57 m
- Mainsail foot (E)
- 5.39 m
- Forestay length
- 16.7 m
Engine & propulsion4
- Engine power
- 40 hp
- Engine type
- Diesel
- Engine make
- Yanmar
- Engine model
- 3JH4E
Hull & construction3
- Hull material
- Fibreglass
- Keel type
- Fin keel, bulb, spade rudder
- Ballast material
- Lead
Tanks2
- Fuel tank
- 136 L
- Fresh water tank
- 197 L
Production & design3
- Production started
- 2007
- Builder
- Beneteau
- Designer
- Bruce Farr
Performance ratios7
- Sail area / displacement
- 20.92
- Displacement / length
- 172.99
- Ballast / displacement
- 39.8 %
- Comfort ratio
- 23.68
- Capsize screening
- 2
- Hull speed
- 7.93 kn
- Load per cm of immersion
- 284.7 kg/cm

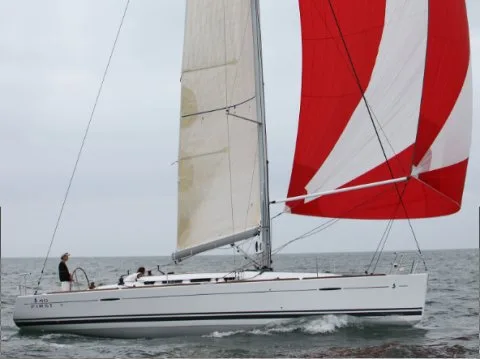

Yacht photography
Years, generations and variants
First 401 generation
01
2007 — status pending
