- Length
- 14.98 m
- Beam
- 4.42 m
- Draft
- 2.39 m
- Sail area
- 110.83 m²
Specifications
Dimensions & displacement6
- Length overall
- 14.98 m
- Waterline length
- 13.26 m
- Beam
- 4.42 m
- Draft
- 2.39 m
- Displacement
- 13,780 kg
- Ballast
- 4,770 kg
Sails & rig9
- Rig type
- Sloop, fractional rig
- Sail area
- 110.83 m²
- Mainsail area
- 59.89 m²
- Foresail area
- 50.97 m²
- Foretriangle height (I)
- 19.03 m
- Foretriangle base (J)
- 5.36 m
- Mainsail luff (P)
- 18.49 m
- Mainsail foot (E)
- 6.48 m
- Forestay length
- 19.77 m
Engine & propulsion3
- Engine power
- 75 hp
- Engine type
- Diesel
- Engine make
- Yanmar
Hull & construction2
- Hull material
- Fibreglass
- Keel type
- Fin keel, bulb, spade rudder
Tanks2
- Fuel tank
- 238 L
- Fresh water tank
- 541 L
Production & design3
- Production started
- 2007
- Builder
- Beneteau
- Designer
- Phillipe Briand
Performance ratios7
- Sail area / displacement
- 19.69
- Displacement / length
- 164.76
- Ballast / displacement
- 34.6 %
- Comfort ratio
- 29.51
- Capsize screening
- 1.86
- Hull speed
- 8.84 kn
- Load per cm of immersion
- 402.5 kg/cm

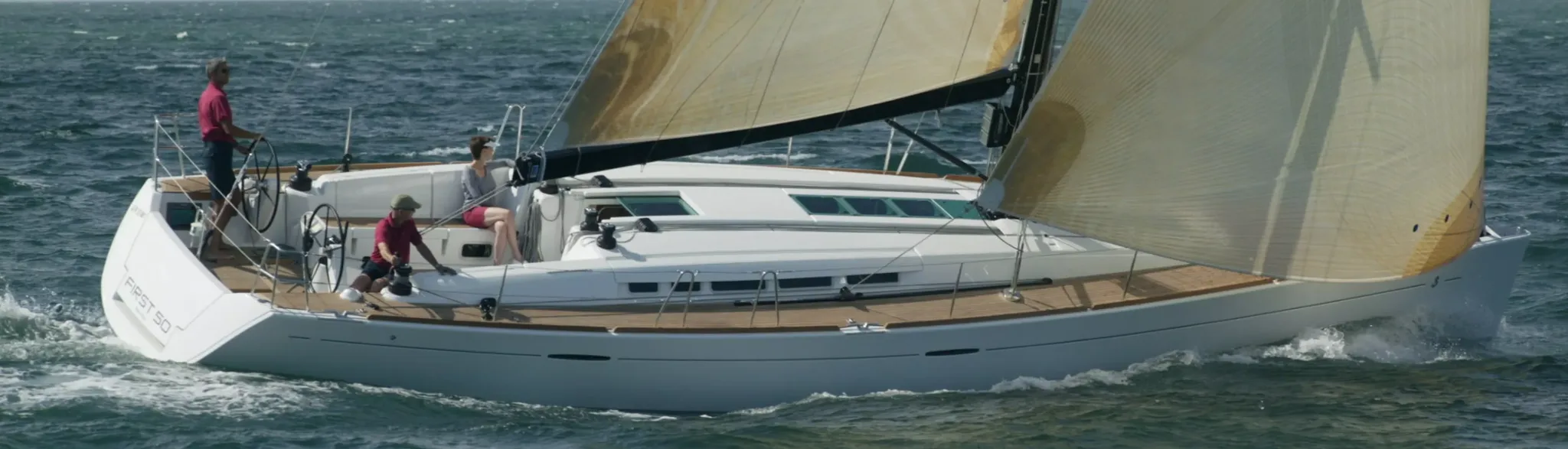

Yacht photography
Years, generations and variants
First 501 generation
01
2007 — status pending
