- Length
- 15.63 m
- Beam
- 4.55 m
- Draft
- 2.8 m
- Sail area
- 115.94 m²
Specifications
Dimensions & displacement6
- Length overall
- 15.63 m
- Waterline length
- 13.15 m
- Beam
- 4.55 m
- Draft
- 2.8 m
- Displacement
- 13,000 kg
- Ballast
- 6,450 kg
Sails & rig9
- Rig type
- Sloop, masthead rig
- Sail area
- 115.94 m²
- Mainsail area
- 51.82 m²
- Foresail area
- 64.15 m²
- Foretriangle height (I)
- 21.15 m
- Foretriangle base (J)
- 6.07 m
- Mainsail luff (P)
- 18.38 m
- Mainsail foot (E)
- 5.64 m
- Forestay length
- 22.01 m
Engine & propulsion4
- Engine power
- 80 hp
- Engine type
- Diesel
- Engine make
- Perkins
- Engine model
- 4236
Hull & construction2
- Hull material
- Fibreglass
- Keel type
- Fin keel, spade rudder
Tanks2
- Fuel tank
- 299 L
- Fresh water tank
- 700 L
Production & design3
- Production started
- 1987
- Builder
- Beneteau
- Designer
- German Frers
Performance ratios7
- Sail area / displacement
- 21.41
- Displacement / length
- 159.36
- Ballast / displacement
- 49.6 %
- Comfort ratio
- 26.57
- Capsize screening
- 1.95
- Hull speed
- 8.8 kn
- Load per cm of immersion
- 410.7 kg/cm

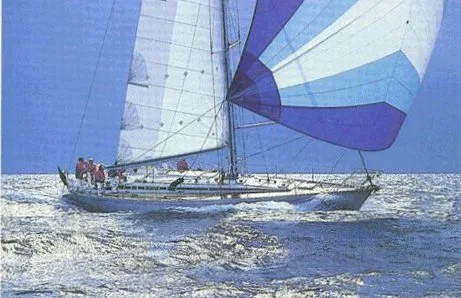

Yacht photography
Years, generations and variants
First 511 generation
01
1987 — status pending
