- Length
- 10.34 m
- Beam
- 3.66 m
- Draft
- 1.85 m
- Sail area
- 50.35 m²
Specifications
Dimensions & displacement6
- Length overall
- 10.34 m
- Waterline length
- 9.35 m
- Beam
- 3.66 m
- Draft
- 1.85 m
- Displacement
- 5,700 kg
- Ballast
- 1,455 kg
Sails & rig9
- Rig type
- Sloop, fractional rig
- Sail area
- 50.35 m²
- Mainsail area
- 23.5 m²
- Foresail area
- 26.83 m²
- Foretriangle height (I)
- 12.88 m
- Foretriangle base (J)
- 4.17 m
- Mainsail luff (P)
- 12.09 m
- Mainsail foot (E)
- 3.89 m
- Forestay length
- 13.54 m
Engine & propulsion1
- Engine type
- Diesel
Hull & construction3
- Hull material
- Fibreglass
- Keel type
- Fin keel, bulb, spade rudder
- Ballast material
- Cast iron
Tanks2
- Fuel tank
- 129 L
- Fresh water tank
- 314 L
Production & design3
- Production started
- 2008
- Builder
- Beneteau
- Designer
- Finot / Conq Assoc.
Performance ratios7
- Sail area / displacement
- 16.1
- Displacement / length
- 194.45
- Ballast / displacement
- 25.5 %
- Comfort ratio
- 22.42
- Capsize screening
- 2.07
- Hull speed
- 7.42 kn
- Load per cm of immersion
- 234.8 kg/cm

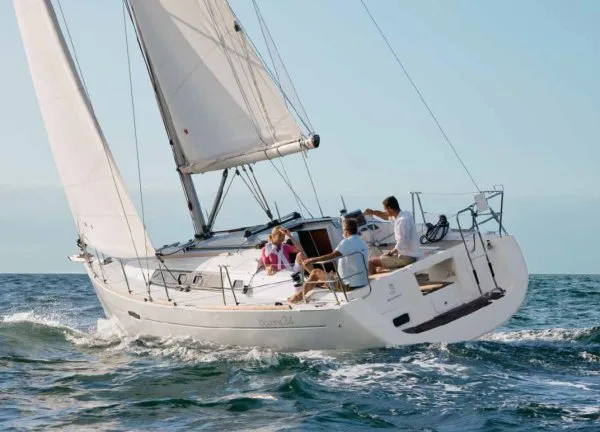

Yacht photography
Years, generations and variants
Oceanis 341 generation
01
2008 — status pending
