- Length
- 14.61 m
- Beam
- 4.75 m
- Draft
- 2.16 m
- Sail area
- 104.42 m²
Specifications
Dimensions & displacement6
- Length overall
- 14.61 m
- Waterline length
- 13.11 m
- Beam
- 4.75 m
- Draft
- 2.16 m
- Displacement
- 13,296 kg
- Mast height above water
- 21.31 m
Sails & rig9
- Rig type
- Sloop, fractional rig
- Sail area
- 104.42 m²
- Mainsail area
- 47.54 m²
- Foresail area
- 56.91 m²
- Foretriangle height (I)
- 18.75 m
- Foretriangle base (J)
- 6.07 m
- Mainsail luff (P)
- 17.09 m
- Mainsail foot (E)
- 5.56 m
- Forestay length
- 19.71 m
Engine & propulsion2
- Engine power
- 75 hp
- Engine type
- Diesel
Hull & construction2
- Hull material
- Fibreglass
- Keel type
- Fin keel, bulb, spade rudder
Tanks2
- Fuel tank
- 401 L
- Fresh water tank
- 689 L
Production & design3
- Production started
- 2012
- Builder
- Beneteau
- Designer
- Berret Racoupeau/Nauta Design
Performance ratios6
- Sail area / displacement
- 18.99
- Displacement / length
- 164.59
- Comfort ratio
- 26.3
- Capsize screening
- 2.03
- Hull speed
- 8.79 kn
- Load per cm of immersion
- 427.5 kg/cm

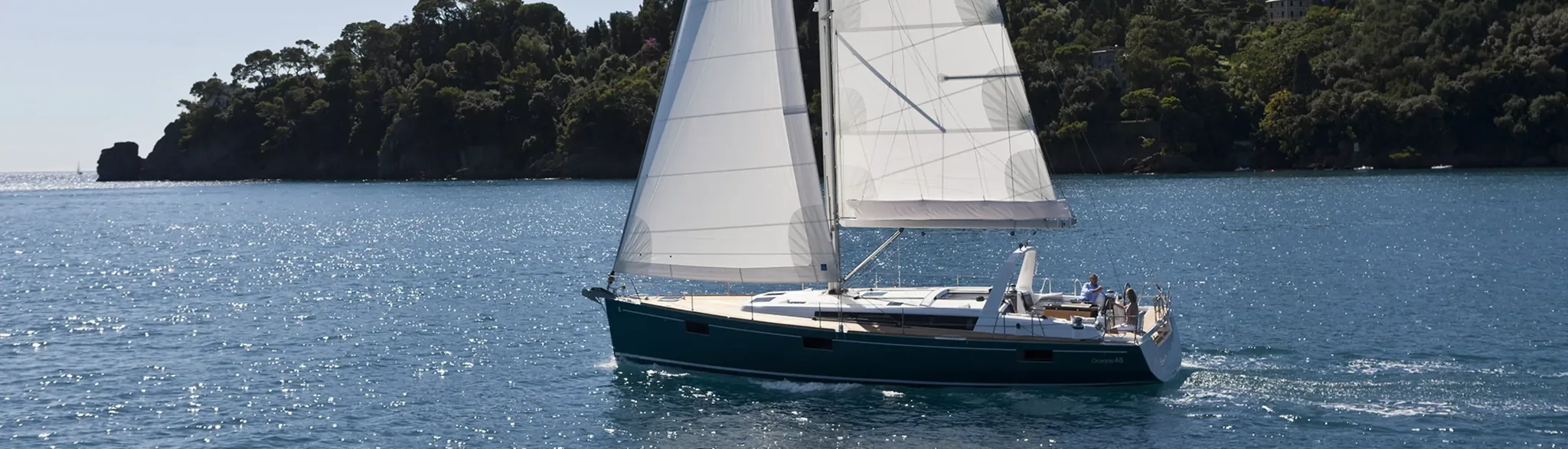

Yacht photography
Years, generations and variants
Oceanis 481 generation
01
2012 — status pending
