- Length
- 9.78 m
- Beam
- 2.99 m
- Draft
- 1.83 m
- Sail area
- 40.97 m²
Specifications
Dimensions & displacement6
- Length overall
- 9.78 m
- Waterline length
- 8.6 m
- Beam
- 2.99 m
- Draft
- 1.83 m
- Displacement
- 2,041 kg
- Ballast
- 907 kg

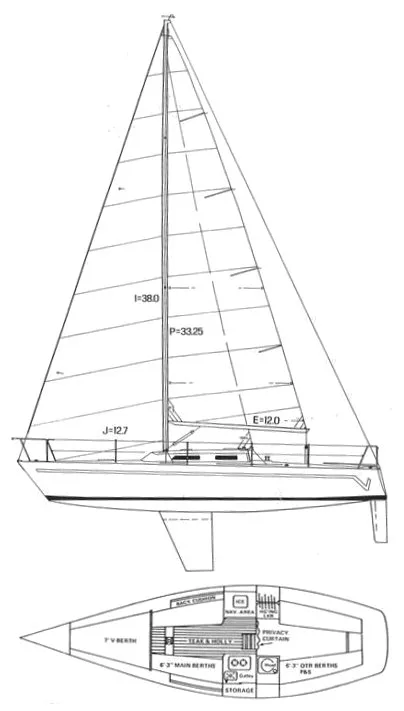

Sails & rig9
- Rig type
- Sloop, masthead rig
- Sail area
- 40.97 m²
- Mainsail area
- 18.53 m²
- Foresail area
- 22.42 m²
- Foretriangle height (I)
- 11.58 m
- Foretriangle base (J)
- 3.87 m
- Mainsail luff (P)
- 10.13 m
- Mainsail foot (E)
- 3.66 m
- Forestay length
- 12.21 m
Engine & propulsion2
- Engine type
- Diesel
- Engine make
- Yanmar
Hull & construction3
- Hull material
- Fibreglass, sandwich construction
- Keel type
- Fin keel, spade rudder
- Ballast material
- Lead
Tanks2
- Fuel tank
- 26 L
- Fresh water tank
- 57 L
Production & design4
- Production started
- 1983
- Production ended
- 1985
- Hulls built
- 56
- Designer
- Bob Evelyn
Performance ratios6
- Sail area / displacement
- 25.96
- Displacement / length
- 89.58
- Ballast / displacement
- 44.4 %
- Comfort ratio
- 11.33
- Capsize screening
- 2.38
- Hull speed
- 7.12 kn
Yacht photography
Years, generations and variants
Evelyn 321 generation
01
1983–1985
