- Length
- 9.73 m
- Beam
- 3.53 m
- Draft
- 1.91 m
- Sail area
- 44.37 m²
Specifications
Dimensions & displacement7
- Length overall
- 9.73 m
- Waterline length
- 8.08 m
- Beam
- 3.53 m
- Draft
- 1.91 m
- Displacement
- 4,627 kg
- Ballast
- 1,814 kg
- Mast height above water
- 14.71 m
Sails & rig9
- Rig type
- Sloop, masthead rig
- Sail area
- 44.37 m²
- Mainsail area
- 24.75 m²
- Foresail area
- 19.62 m²
- Foretriangle height (I)
- 13.03 m
- Foretriangle base (J)
- 3.01 m
- Mainsail luff (P)
- 11.81 m
- Mainsail foot (E)
- 4.19 m
- Forestay length
- 13.37 m
Engine & propulsion4
- Engine power
- 21 hp
- Engine type
- Diesel
- Engine make
- Yanmar
- Engine model
- 3YM30
Hull & construction3
- Hull material
- Fibreglass
- Keel type
- Fin keel, bulb, spade rudder
- Ballast material
- Lead
Tanks2
- Fuel tank
- 102 L
- Fresh water tank
- 155 L
Production & design2
- Production started
- 2012
- Designer
- Gerry Douglas
Performance ratios5
- Sail area / displacement
- 16.32
- Ballast / displacement
- 39.2 %
- Comfort ratio
- 21.47
- Capsize screening
- 2.14
- Hull speed
- 6.9 kn

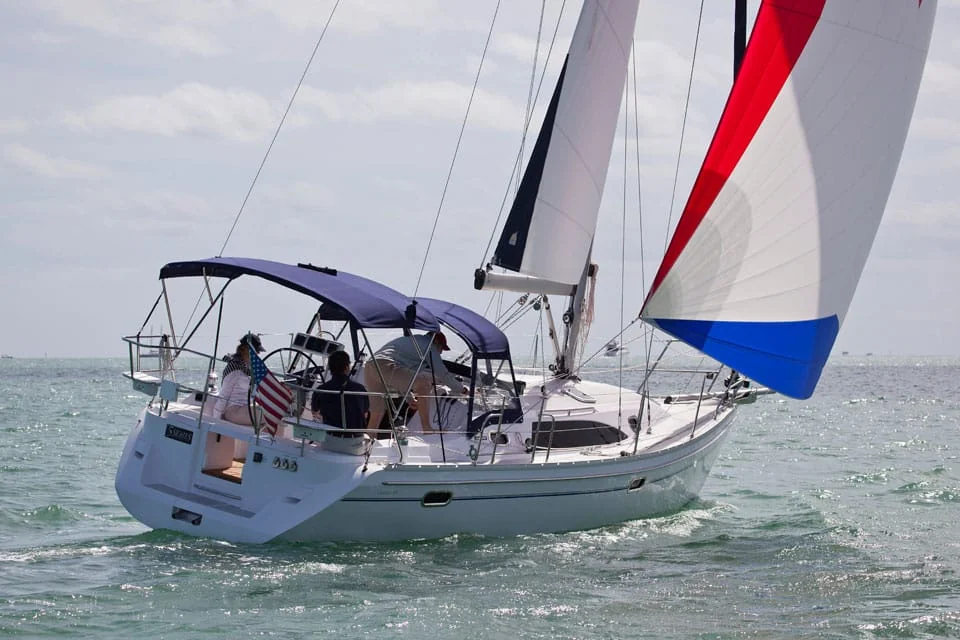

Yacht photography
Years, generations and variants
Catalina 3151 generation
01
2012–present
