- Length
- 9.14 m
- Beam
- 3.02 m
- Draft
- 1.4 m
- Sail area
- 35.49 m²
Specifications
Dimensions & displacement6
- Length overall
- 9.14 m
- Waterline length
- 6.71 m
- Beam
- 3.02 m
- Draft
- 1.4 m
- Displacement
- 3,493 kg
- Ballast
- 1,383 kg
Sails & rig9
- Rig type
- Sloop, masthead rig
- Sail area
- 35.49 m²
- Mainsail area
- 17.1 m²
- Foresail area
- 18.42 m²
- Foretriangle height (I)
- 11.4 m
- Foretriangle base (J)
- 3.23 m
- Mainsail luff (P)
- 9.51 m
- Mainsail foot (E)
- 3.6 m
- Forestay length
- 11.85 m
Engine & propulsion3
- Engine power
- 15 hp
- Engine type
- Diesel
- Engine make
- Volvo
Hull & construction3
- Hull material
- Fibreglass
- Keel type
- Fin keel, skeg-hung rudder
- Ballast material
- Cast iron
Production & design5
- Production started
- 1966
- Production ended
- 1976
- Hulls built
- 1500
- Builder
- Dufour
- Designer
- Michel Dufour
Performance ratios7
- Sail area / displacement
- 15.72
- Displacement / length
- 322.83
- Ballast / displacement
- 39.6 %
- Comfort ratio
- 22.95
- Capsize screening
- 2.01
- Hull speed
- 6.29 kn
- Load per cm of immersion
- 139.3 kg/cm

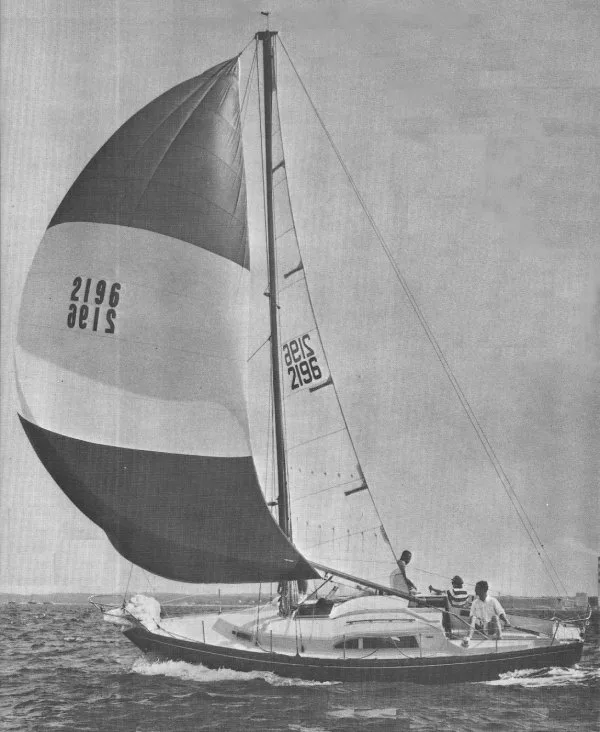

Yacht photography
Years, generations and variants
Arpege 301 generation
01
1966–1976
