- Length
- 12.06 m
- Beam
- 4.01 m
- Draft
- 1.4 m
- Sail area
- 82.22 m²
Specifications
Dimensions & displacement7
- Length overall
- 12.06 m
- Waterline length
- 9.75 m
- Beam
- 4.01 m
- Draft
- 1.4 m
- Displacement
- 9,525 kg
- Ballast
- 4,082 kg
- Mast height above water
- 16.54 m
Sails & rig9
- Rig type
- Cutter
- Sail area
- 82.22 m²
- Mainsail area
- 30.16 m²
- Foresail area
- 39.98 m²
- Foretriangle height (I)
- 15.29 m
- Foretriangle base (J)
- 5.23 m
- Mainsail luff (P)
- 13.05 m
- Mainsail foot (E)
- 4.62 m
- Forestay length
- 16.16 m
Engine & propulsion2
- Engine power
- 56 hp
- Engine type
- Diesel

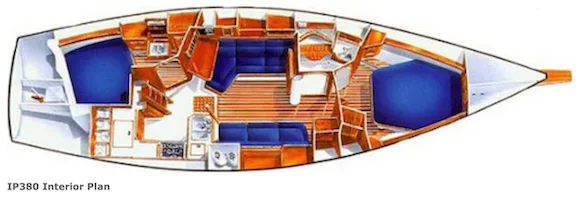

Layout & accommodation1
- Headroom
- 1.96 m
Hull & construction2
- Hull material
- Fibreglass
- Keel type
- Long keel
Tanks2
- Fuel tank
- 322 L
- Fresh water tank
- 644 L
Production & design4
- Production started
- 1998
- Production ended
- 2004
- Hulls built
- 169
- Designer
- Bob Johnson
Performance ratios6
- Sail area / displacement
- 18.68
- Displacement / length
- 286.1
- Ballast / displacement
- 42.9 %
- Comfort ratio
- 30.6
- Capsize screening
- 1.91
- Hull speed
- 7.58 kn
Yacht photography
Years, generations and variants
Island Packet 3801 generation
01
1998–2004
