- Length
- 6.93 m
- Beam
- 2.41 m
- Draft
- 1.62 m
- Sail area
- 22.85 m²
Specifications
Dimensions & displacement8
- Length overall
- 6.93 m
- Waterline length
- 5.94 m
- Beam
- 2.41 m
- Draft
- 1.62 m
- Minimum draft
- 0.69 m
- Displacement
- 1,554 kg
- Ballast
- 544 kg
- Mast height above water
- 9.75 m
Sails & rig9
- Rig type
- Sloop, masthead rig
- Sail area
- 22.85 m²
- Mainsail area
- 9.79 m²
- Foresail area
- 13.01 m²
- Foretriangle height (I)
- 8.53 m
- Foretriangle base (J)
- 3.05 m
- Mainsail luff (P)
- 7.14 m
- Mainsail foot (E)
- 2.74 m
- Forestay length
- 9.06 m
Engine & propulsion2
- Engine power
- 15 hp
- Engine type
- Outboard

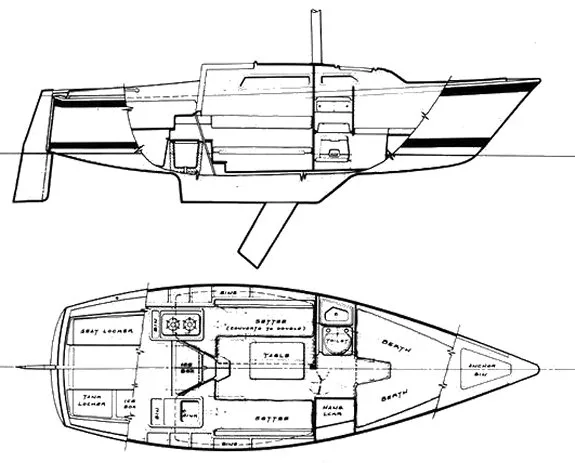

Layout & accommodation1
- Headroom
- 1.52 m
Hull & construction3
- Hull material
- Fibreglass
- Keel type
- Keel with centreboard
- Ballast material
- Lead
Production & design4
- Production started
- 1978
- Production ended
- 1984
- Hulls built
- 1000
- Designer
- C. Raymond Hunt Assoc.
Performance ratios6
- Sail area / displacement
- 17.37
- Displacement / length
- 206.21
- Ballast / displacement
- 35 %
- Comfort ratio
- 16.41
- Capsize screening
- 2.1
- Hull speed
- 5.92 kn
Yacht photography
Years, generations and variants
O’Day 23-21 generation
01
1978–1984
